Choosing the right Open-Frame Power Supply Enclosure for your project is crucial to ensuring the safety, reliability, and longevity of your power systems. Whether you're designing an industrial automation system, a telecom module, or a consumer electronic device, selecting an appropriate enclosure is an important decision that can affect performance, cooling efficiency, and overall cost. In this guide, we’ll walk you through the key factors to consider when selecting the perfect open-frame PSU enclosure for your needs.
1. Understand Your Project's Size and Space Requirements
The first step in choosing the right Open-Frame Power Supply Enclosure is to assess the available space and dimensions of your project. Power supply enclosures come in a variety of sizes, so it’s important to measure the components you need to house and ensure the enclosure can accommodate them. Make sure to allow extra space for wiring, cooling, and any future expansions. If your project involves high-density designs or compact spaces, opt for smaller enclosures with efficient layout designs.
2. Consider the Material of the Enclosure
Enclosures can be made from various materials such as plastic, metal, or a combination of both. The material you choose will depend on your project's requirements:

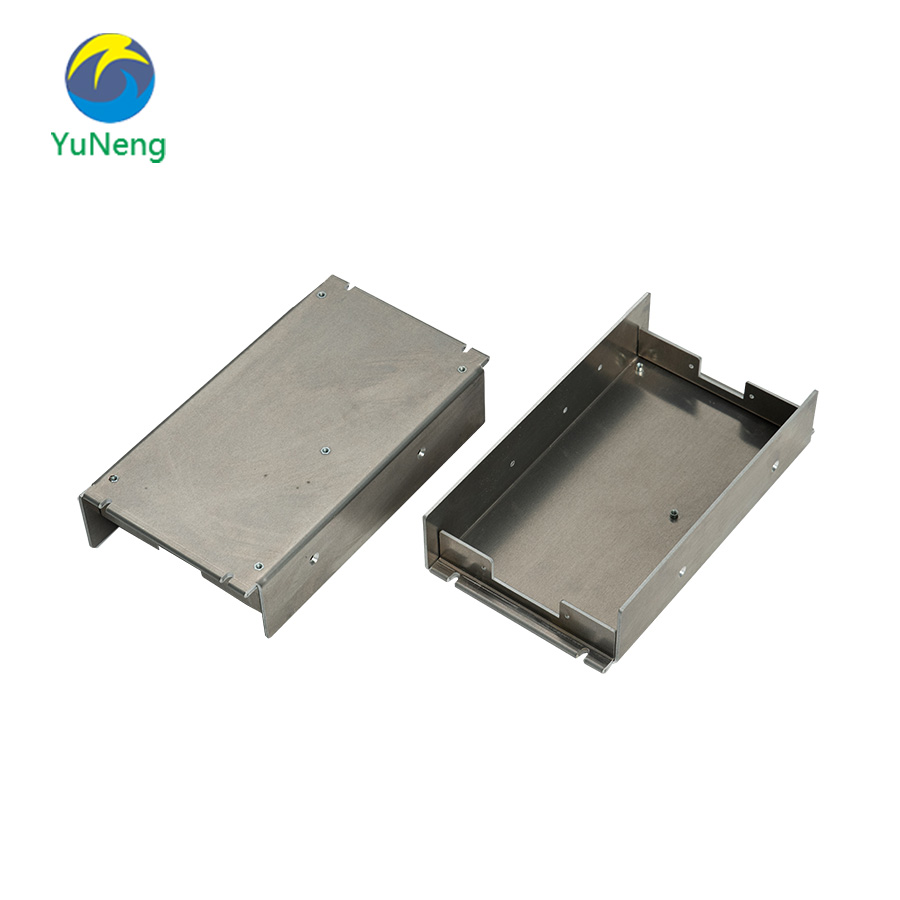

Metal Enclosures: Made of materials like aluminum or steel, metal enclosures are ideal for applications requiring superior durability and heat dissipation. These are often used in industrial automation and telecom equipment.
Plastic Enclosures: Lightweight and cost-effective, plastic enclosures are suitable for lower-cost, lower-performance applications like consumer electronics or home appliances. Polycarbonate or ABS are commonly used materials that offer good electrical insulation properties and impact resistance.
For environments that demand robust protection and heat management, metal enclosures may be more suitable, while plastic may be sufficient for non-heavy-duty applications.
3. Assess the Thermal Management Needs
Thermal management is a critical factor for any power supply system. Open-frame power supply enclosures allow for better airflow, which helps to cool the components inside. However, depending on your project, you may need more advanced cooling solutions. Consider the following:
Ventilation: Ensure the enclosure provides adequate ventilation slots or openings to allow for optimal airflow.
Active Cooling: For high-power applications or environments with high ambient temperatures, you may need to include fans or Heat sinks inside the enclosure.
Thermal Ratings: Ensure that the material and design of the enclosure can handle the expected temperature range of your power supply system.
Selecting the right thermal management approach can prevent overheating and extend the lifespan of your power supply.
4. Customization Options
Open-frame power supply enclosures offer significant flexibility in terms of customization. If you have specific requirements, such as custom dimensions, cutouts for connectors, or specific mounting options, working with a supplier that offers custom solutions is important. Some features to consider for customization include:
Custom sizes: Custom-fit designs ensure that all components fit perfectly within the enclosure.
Mounting Options: Choose enclosures that offer multiple mounting options to simplify installation.
Surface Finish: Depending on your aesthetic and functional needs, you may want a specific surface finish such as matte, glossy, or textured.
Pre-Drilled Holes: Custom holes or slots for wiring, connectors, or other components can save time during the assembly process.
Working with a supplier who offers customization can help meet specific needs and streamline your project.
5. Ensure Compliance with Industry Standards
For many industries, compliance with safety standards is a must. When selecting an open-frame power supply enclosure, ensure it meets the necessary industry standards, such as:
UL Certification: This ensures that the enclosure meets safety standards for electrical systems.
IP Rating: The Ingress Protection (IP) rating is important for enclosures used in outdoor or hazardous environments. A higher IP rating indicates greater protection against dust and moisture.
RoHS Compliance: Ensure the materials used in the enclosure are free from hazardous substances if your product is intended for markets that require RoHS compliance.
Compliance with these standards helps ensure safety and reliability in the long term.
6. Consider Cost vs. Performance
Finally, balance your project’s budget with the required performance characteristics. While metal enclosures may offer superior durability and thermal management, they can be more expensive. Plastic enclosures, while more affordable, may not offer the same level of protection in extreme environments.
It’s essential to select an enclosure that fits within your budget while also meeting your performance needs. Consider the total cost of ownership, including potential long-term maintenance, cooling requirements, and durability.
Conclusion
Choosing the right open-frame power supply enclosure is vital to the success of your project. By considering the size, material, thermal management needs, customization options, and compliance requirements, you can ensure that your power supply system operates efficiently and reliably. Whether you're working on an industrial application, a consumer product, or a specialized piece of equipment, the right enclosure can make a significant difference in performance and longevity.
If you need a custom open-frame power supply enclosure, be sure to partner with a trusted supplier that can meet your specific requirements. For more information on open-frame enclosures, visit Lucky Vacuum Forming's Open-Frame Power Supply Enclosures.
